디자인 매뉴얼
디자인 소프트웨어에 대한 상세 매뉴얼입니다
Menu
Common
뷰어의 기본 조작법, 레이아웃, 툴을 설명합니다.
3D View
모델을 보기 위한 회전 / 확대 축소 / 이동 방법을 설명합니다.
1. 회전 / 확대 축소 / 이동
- 회전: 마우스 왼쪽 버튼 + 드래그
- 확대 축소: 마우스 휠
- 이동: 마우스 우측 버튼 + 드래그
layout
전체 화면 구성 및 화면의 위치 / 크기를 변경하는 방법을 설명합니다.

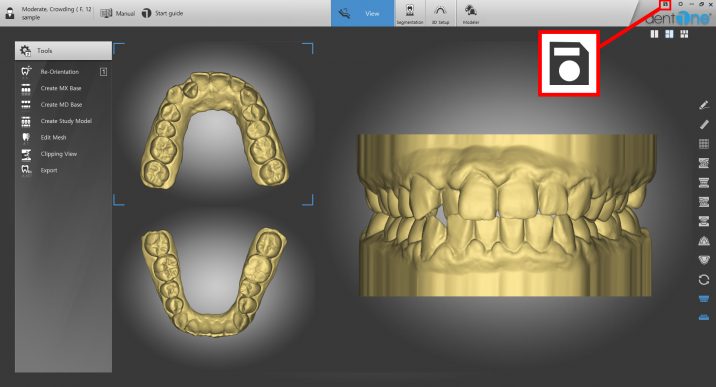

1. 화면 구성
: 탭버튼 / 기능 툴바 / 단계 툴바 / 쇼-하이드 툴바 Common 툴바 / View 영역으로 구성되어 있습니다.

2. View 영역
: View영역은 3개로(상악 View / 하악 View / 교합 View) 구성되어 있습니다.

3. View 위치 변경
: 2개의 좌측 작은 View와 우측 큰 View로 구성되어있습니다.
- 좌측 View를 더블 클릭하면 우측 View로 위치 변경.
- 우측 View를 더블 클릭하면 최대 화면 View로 변경.
※더블 클릭하면 이전 상태로 되돌아 갑니다.
도구
1. 일반 도구

Free draw: 그리기 모드로 전환한다

Length: 길이 측정 모드로 전환한다

Grid: 그리드를 표시한다

Right rotate: 우측 90도 회전한다

Front rotate: 정면으로 회전한다

Left rotate: 왼쪽 90도 회전한다

Back rotate: 후면으로 회전한다

Upper rotate: 상악 교합으로 회전한다

Lower rotate: 하악 교합으로 회전한다

Reset rotate: 회전을 초기화 한다

Mx show/Hide: 상악을 표시 / 숨기기 한다

Md show/Hide: 하악을 표시 / 숨기기 한다

Clipping View: 단면보기 모드로 전환한다
2. 도구 표시 / 숨기기

Maxilla: 상악 잇몸 표시 / 숨기기 한다

Mandible: 하악 잇몸 표시 / 숨기기 한다

Tooth: 치아 표시 / 숨기기 한다

Opacity: 치아와 잇몸의 투명도를 조절한다

FACC: FACC 선을 표시 / 숨기기 한다

Plane: 교합 평면을 표시 / 숨기기 한다

Attachment: 어태치먼트를 표시 / 숨기기 한다

Label: 라벨을 표시 / 숨기기 한다

Superimposition: 초기모델/셋업/레이어/스텝을 중첩한다

Overlap Info: 치아간의 중첩량을 표시 / 숨기기 한다

Arch: 아치를 표시 / 숨기기 한다
3. 환경 설정
:환경 설정 값을 확인 및 수정하는 기능이다.
