3D Viewer
This section explains how to rotate, zoom in&out, and pan to check 3D data.
1. Rotate / Zoom / Pan
- Rotate : Left click + drag
- Zoom : Mouse wheel
- Pan : Right click + drag
Layout
This section explains how to change the screen composition, view position and size of windows.

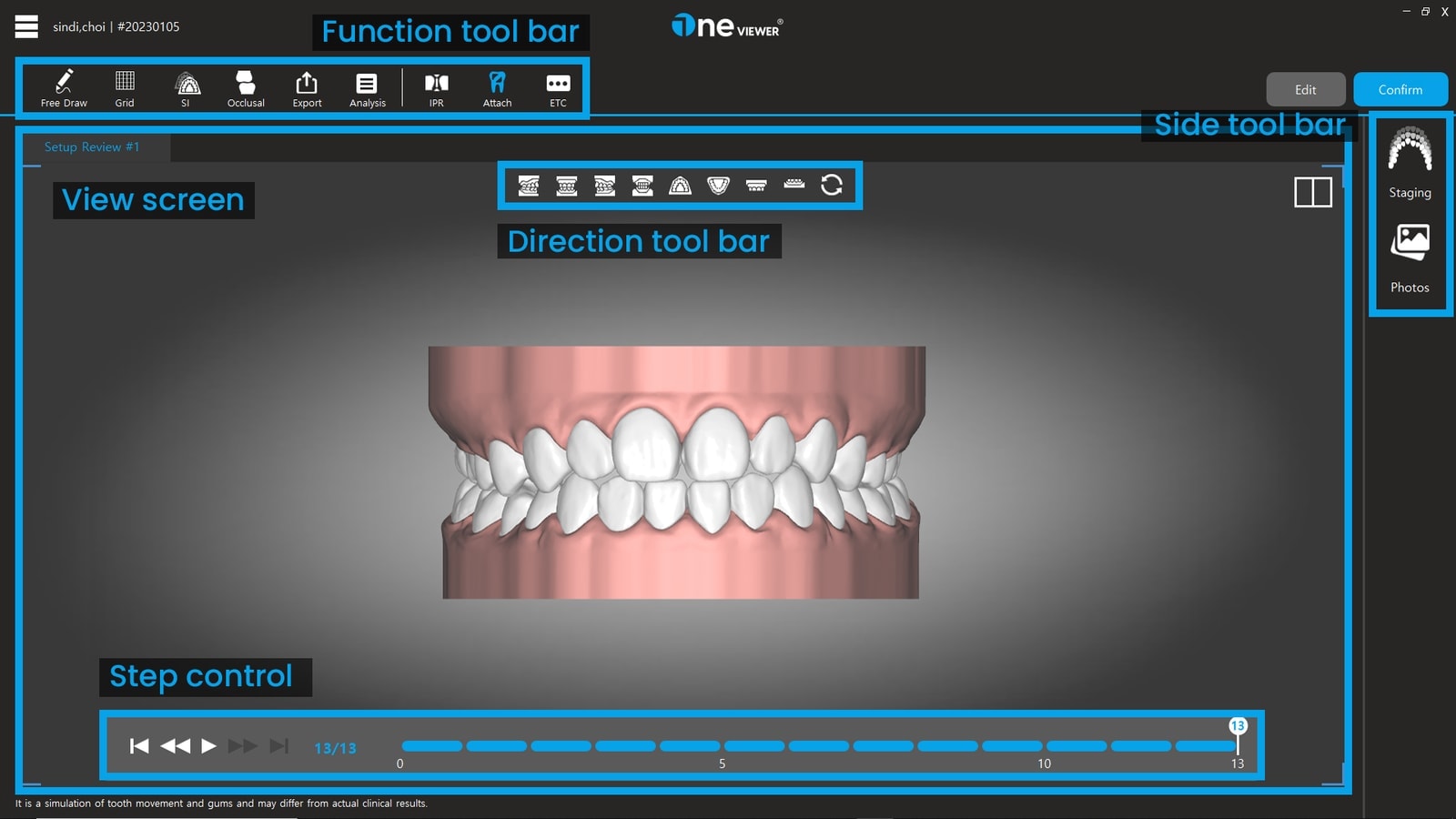

1. View screen
: Function tool bar, View screen, Direction tool bar, Side tool bar, it consists of a Step control area.
Step control
Steps from lnitial State to Lab Final State are displayed separately.
- When each step is selected, the 3D model corresponding to the selected step is displayed in View.
- Step is moved by selecting the arrow on the left or the white bar on the right.
Tools
1. Common Tools
Right rotate : Rotate 90 degrees to the right
Front rotate : Rotate to the front
Left rotate : Rotate 90 degrees to the left
Back rotate : Rotate to the back
Upper rotate : Rotate to Mx occlusal
Lower rotate : Rotate to Md occlusal
Mx show/hide : Show/Hide Mx
Md show/hide : Show/Hide Md
Reset rotate : Reset camera
